High Pressure Hydraulic Metal Compactor 22 KW For Medium-To-Large Metal Recycling Operations

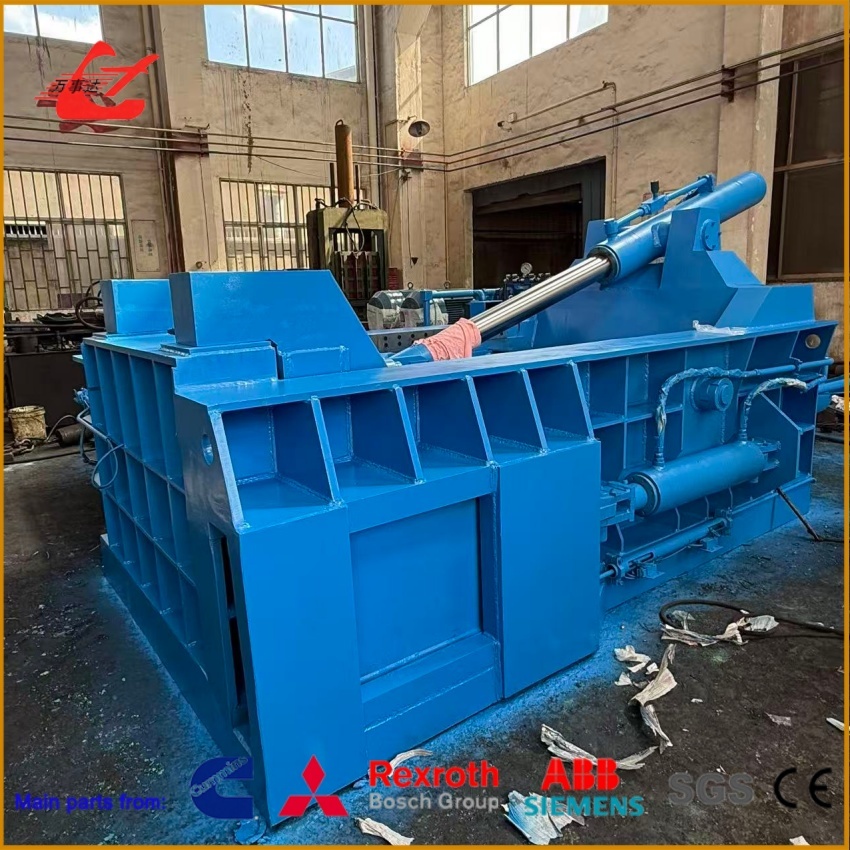

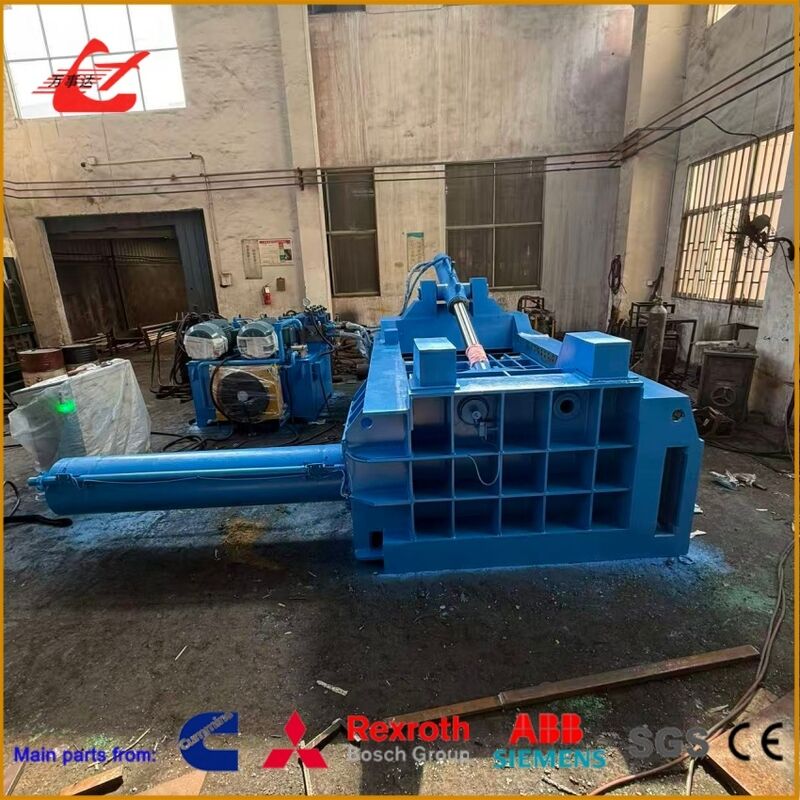

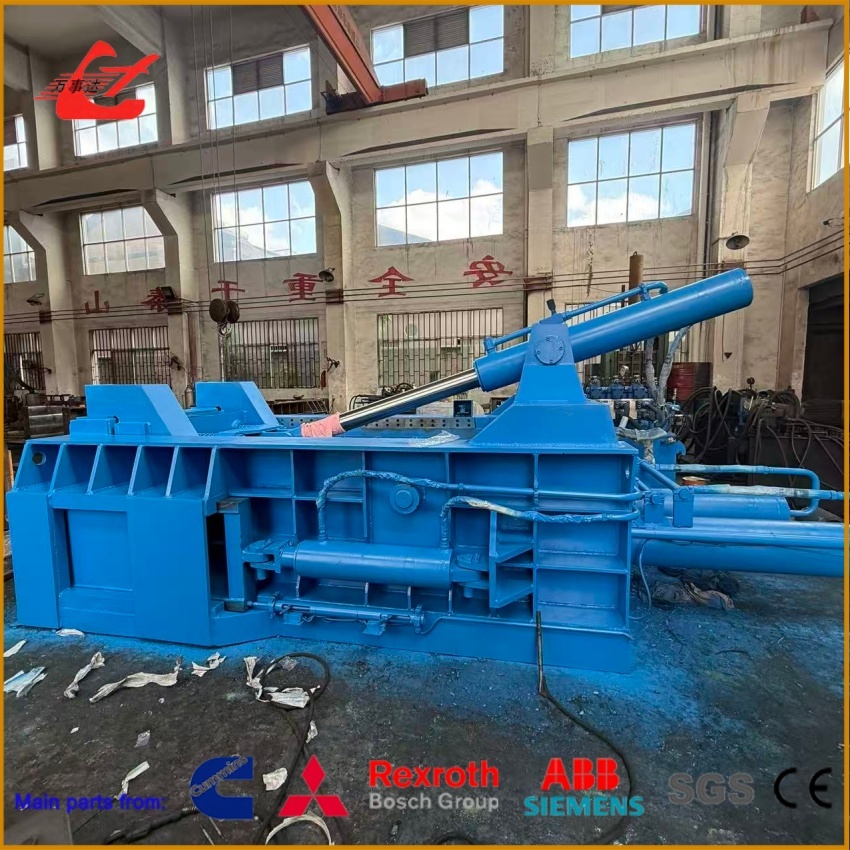

The Y83/T-160 Hydraulic Metal Compactor is a powerful and reliable scrap compression machine designed for medium-to-large metal recycling operations. This equipment uses a high-pressure hydraulic system to compress loose steel, aluminum, copper, and other metal scraps into uniform high-density blocks.

With its 1600 kN compression force, enlarged 1600×1000×800 mm charging chamber, and stable PLC semi-automatic control, this heavy-duty baling system greatly reduces storage space, improves transportation efficiency, and increases scrap value—helping recycling centers lower operating costs and boost productivity.

Application

This hydraulic metal baling system is widely used in:

• Scrap metal recycling centers

• Steel mills & foundries

• Car dismantling yards

• Machinery manufacturing plants

• Non-ferrous metal recovery facilities

• Waste processing & logistics centers

Suitable for compacting:
Steel scrap · Aluminum scrap · Copper scrap · Stainless steel · Light metal · Punching offcuts · Production waste

 Technical Specifications

Key Features

• High Compression Density:Creates 400×400 mm high-density blocks ideal for transport and melting.

• Strong Construction:Heavy-duty welded steel frame ensures long service life under continuous operation.

• Large Feeding Chamber:1600×1000×800 mm chamber accommodates big and irregular scraps.

• Efficient Output:Up to 2000–3000 kg/h processing capacity.

• Safe & Easy Operation:PLC system offers stable, user-friendly, semi-automatic control.

• Low Maintenance:High-quality hydraulic components reduce downtime.

• Energy Saving:22 kW motor provides strong performance with low energy consumption.

Quality Assurance

• Manufactured under ISO9001:2000 standards

• Strict welding, pressure testing, and mechanical inspections

• Premium hydraulic components for stable long-term operation

After-Sales Service

1. One-year warranty and lifetime technical support

2. Remote troubleshooting and fast spare parts supply

3. 24/7 service—just contact us anytime for assistance

FAQ

Q1: What types of scrap can this machine compress?
A: Steel, aluminum, copper, stainless steel, light metals, stamping scraps, production offcuts, and mixed metal pieces.

Q2: How large is the feeding chamber?
A: 1600×1000×800 mm, suitable for big-size scrap materials.

Q3: What is the final bale size?
A: Standard bale size is 400×400 mm, easy for packing, storage, and furnace feeding.

Q4: Does this machine require skilled operators?
A: No, the PLC semi-automatic system is easy to learn—operators can master it quickly.

Q5: How long is the lead time?
A: Normally 30–45 days, depending on customization requirements.

Q6: Can the machine be customized?
A: Yes, bale size, power system, motor brand, chamber dimension, and color can be customized.

Q7: What is the maintenance like?
A: Simple—regular oil checks, cylinder inspection, and cleaning are usually sufficient.

Contact Us

If you need a quotation, video, or customized solution, feel free to contact us anytime.
We will recommend the best model based on your scrap type and desired output.
